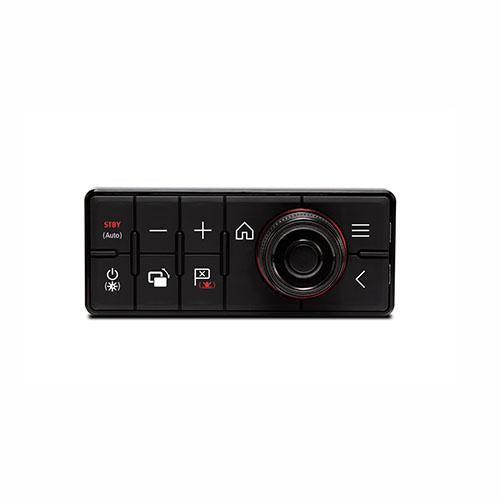

Raymarine RMK-10 Remote Keypad is an ultra-compact wired keypad accessory that provides full control of aSeries cSeries eSeries eS Series and gS Series Multifunction Displays (MFDs) from any mounting location.
Features:
- The fully backlit RMK-10 includes dedicated keys for home menu zoom in/out window control waypoint management power/brightness as well as Evolution autopilot control
- RMK-10 also features the same multifunction rotary controller with the integrated cursor pad found on eS Series multifunction displays
- The RMK-10 can be surface-mounted or flush-mounted and is available with key mats for horizontal or vertical installation. This gives you the flexibility to install the RMK-10 just about anywhere
RMK-10 Mounting Options:
- The RMK-10 is the perfect solution for controlling MFD’s mounted beyond arm’s reach or in overhead electronics boxes. Instead of reaching for the MFD the RMK-10 brings the system’s controls to you
- For the ultimate in convenience mount the RMK-10 in the arm of your favorite helm chair. Now it’s easy to sit back relax and enjoy the ride on autopilot while still being able to interact with your navigation system
- RMK-10 is also great for bringing remote system control to secondary monitors and onboard LCD TV sets connected to the VGA or HDMI output of select e-Series eS-Series and gS-Series displays. Now you can see and control your Raymarine navigation system from a below-deck navigation table salon or stateroom
Utilising Raymarine’s RayNet high speed networking the RMK-10 can be setup to control a single multifunction display or multiple displays mounted at the same location. When controlling multiple displays on the same helm the RMK-10 provides seamless control across all of the displays.
When used with aSeries or gS Series Multitouch displays the RMK-10 brings full HybridTouch control capability to these products. The RMK-10 integrates seamlessly with the LightHouse II user interface and allows the navigation system to be operated solely by touch by keypad or any variation between.
Specifications:
Power:
- PoE Class: Class 1
- Nominal Supply Voltage: 12 / 24 V dc
- Operating Voltage Range: 10.8V dc to 31.2V dc
- Power Consumption: 3.84W
Environmental:
- Operating Temperature: -13ºF to 131ºF
- Storage Temperature: -22ºF to 158ºF
- Relative Humidity: Maximum 75%
- Waterproof Rating: IPX6
Wired Connections:
- Network/Power: 1 x RayNet Connector | (gS Series - 1000 Mb/s plus PoE) | (aSeries cSeries eSeries - 100 Mb/s)
- Alternate Power: 1 x Power Connector
