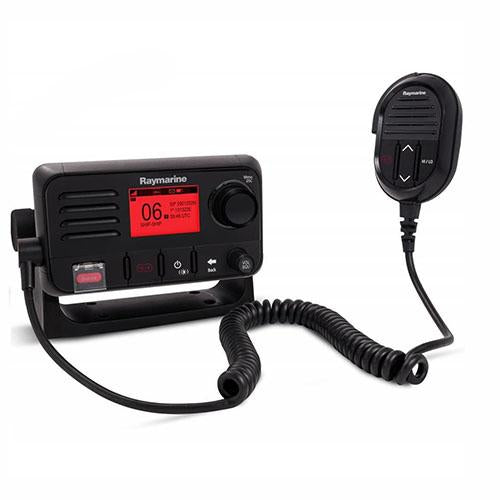

The Ray50 VHF packs a powerful communication system into a case that is small enough to mount just about anywhere. With 25W of power Class D Digital Selective Calling and simple integration with other onboard electronics the Ray50 is the perfect solution when space is at a premium.
The Ray50 features a large display with easy-to-read digits and icons that are visible day or night. The Ray50 features a premium quality speaker and is also equipped with Class D Digital Selective Calling (DSC) with simple to use controls and an intuitive menu system. You'll be a Ray50 expert in no time!
The Ray50 features standard NMEA2000 and NMEA0183 networking for simple connection to onboard systems and it integrates seamlessly with Raymarine LightHouse II Multifunction Displays for advanced DSC functions. The Ray50 offers flexible mounting too. Use the included trunnion bracket to attach the radio to any console bulkhead or overhead. The radio can also be flush-mounted using its convenient front-mount attachment points. The Ray50 boasts a wide array of standard features including NOAA weather alert dual-watch tri-watch scanning selective scanning and much more.
Features:
- Compact space-saving design saves space on crowded helms
- No compromises; full power transmitter and robust VHF features
- Full-sized controls and LCD are easy to see and operate
- Sleek black bezel looks great with Raymarine MFDs and Glass Bridge displays
- Standard NMEA2000 and NMEA0183 networking for simple connection to onboard systems
Specifications:
- Dimensions:
Size (HxWxD) Main Unit: Height: inc bezel = 88.5mm (3.5")
Width: inc bezel = 168mm (6.6") max
Depth: 173.75mm (6.8") max excl rear cables
Weight Main Unit: 1.7 Kg (3.74 lbs)
- Environmental Specification:
Water Integrity: Complies with IPX6 & IPX7
Complies with EN60945
Operating Temperature Range: -20°C to 60°C
Storage Temperature Range: -25°C to 70°C
Humidity: Up to 95%
- Electrical Specification:
Communications Port: NMEA 0183 (version 4.01); NMEA2000 (version 3.0)
Nominal Supply Voltage: 12V DC. Reverse polarity and over voltage protected
Operating Voltage Range: 9V DC to 16V DC
Current Consumption: Less than 6A at High Power (13.6V)
Standby: 600 mA
Receive: 2 Amps
- Transmitter Specification:
Channels: All available US International and Canadian VHF marine bands
Frequency Range: 156.000 – 157.425 MHz
155.500 to 161.425 MHz Private channels
Frequency Stability: + / - 1.5 ppm
Channel Spacing: 12.5 kHz
Power Output: High Power = 25 Watt
Low Power = 1 Watt
Spurious emmission: Better than -36 dBm at 25W (Less than 0.25 µW)
Maximum Deviation: +/- 5kHz
Antenna port impedance: 50 ohms typical
- Receiver Specification:
Receiver Type: Double Conversion Super Heterodyne
Channels: All available US International and Canadian VHF marine bands
Frequency Range: 156.000 – 157.425 MHz
155.500 to 161.425 MHz Private channels
Sensitivity: Better than 1 microvolt EMF @ 20dB SINAD
Squelch Sensitivity: Less than -2 dBµ EMF
Hum & Noise: Better than -40 dB
Audio Distortion: Less than 10%
Receiver Sensitivity: Distance -119 dBm (0.25uV)@12 dB SINAD ? Typical
Local -110 dBm (0.7uV)@12 dB SINAD ? Typical
Adjacent Channel Selectivity: More than 70 dB
Spurious Response Rejection: More than 70 dB
Inter Modulation Rejection: More than 70 dB
- Speakers:
Base Station Speaker Power Output: 2.5W (8O)
Fistmic Speaker Power: 1W (16O)
External Speaker Power: 5W (4O) / 2.5W (8O)
